- max format. 364 x 520 mm to 135 x 160.0 mm micro formats.
- High performance up to 3,600 files / hour (depending on size)
- Booklets up to 100 pages / 80 g / m²
- Paper Weight 45 to 210 g / sqm
- Blocks up to 30 sheets / 80 g / m²
- suction system suction belts and blowers
- Paper Type: Use hand, chemistry, coated to groups of stations collection (2×4)
- Dimension (W x D x H) 65 x 77 x 214 cm
- 160Kg weight

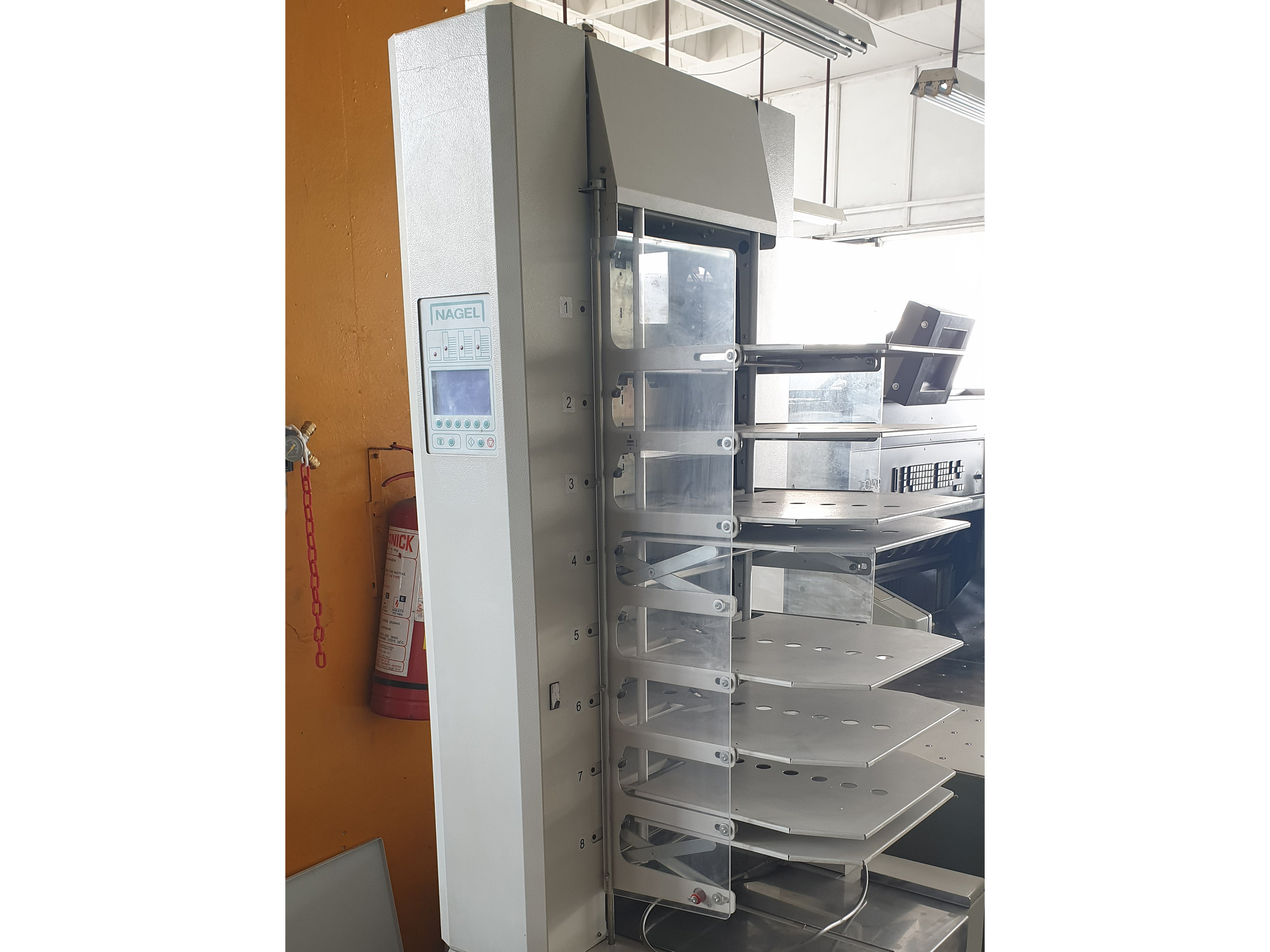

Collators Nagel S8 with power sheets, with 8 trays with suction and blowing mechanism to separate sheet, double-feed, paper jam handling, transport of paper that is caught, detecting empty trays, LCD display.
This element is part of a composition of three units that allow you to print brochures and booklets.
The tower in question can also be used on compatible systems to feed the sheets to be collated, cut or sew.
Dismantled, In stock
