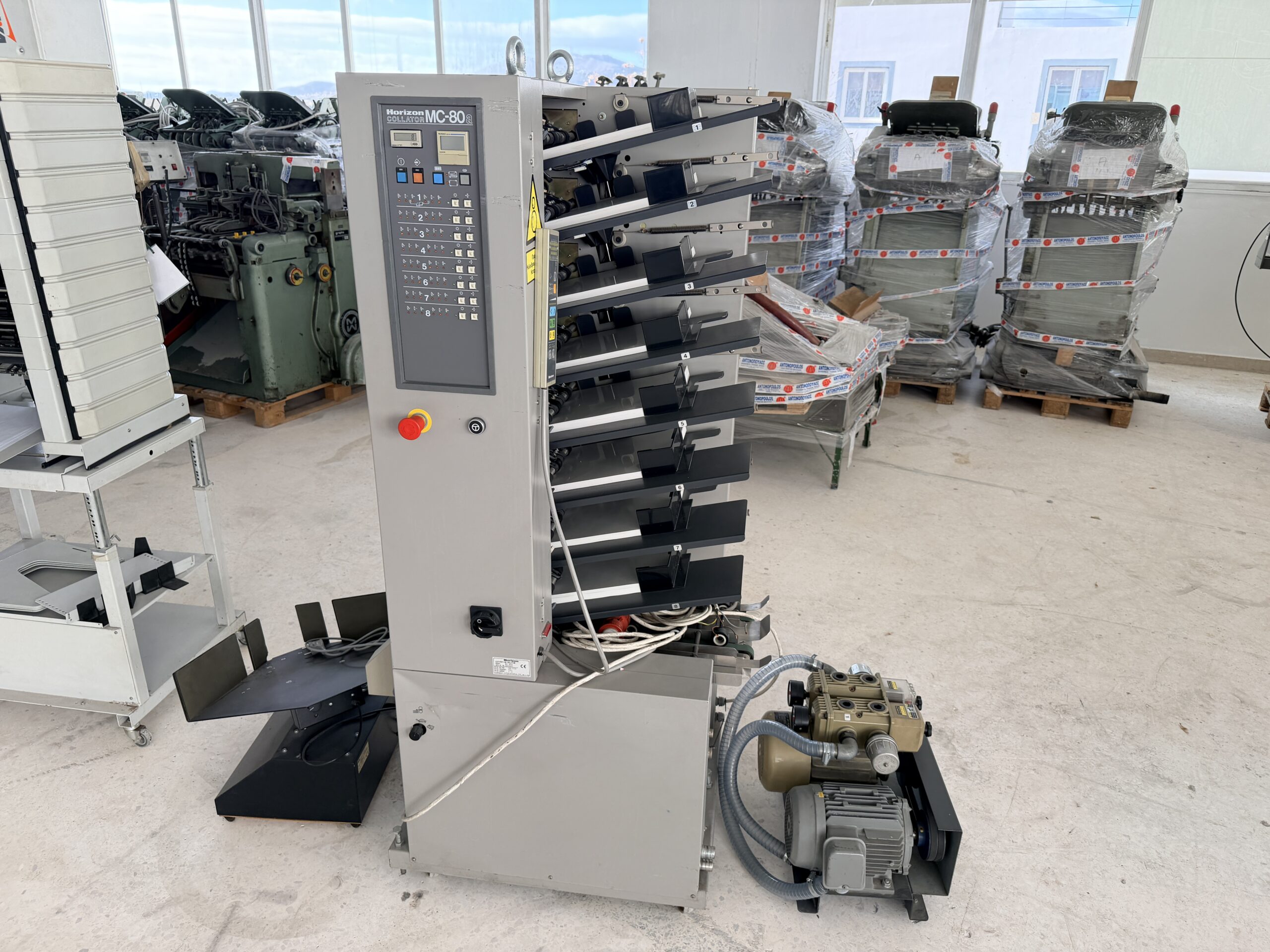

HORIZON MC80a

Horizon MC-80a Collator, Used

The Horizon MC-80a is a proven and cost-effective collator known for its reliability and ease of use. As an older model, it offers an economical solution for print shops and binderies looking for solid performance at an attractive price.

Key Features:
– Modular design: Expandable and compatible with other Horizon systems
– Vacuum feeding for precise and reliable sheet feeding
– User-friendly control panel for easy setup and operation
– Integrated double sheet detection to prevent errors
– Automatic error sheet detection and ejection for uninterrupted production
– Compatible with various paper qualities and formats

Technical Specifications:
– Station capacity: 8 stations
– Max. sheet size: 350 x 500 mm
– Min. sheet size: 148 x 210 mm
– Paper weight: 52 – 300 g/m²
– Stack height per station: up to 80 mm
– Production speed: up to 8,000 sets per hour
– Power supply: 230 V, 50/60 Hz
– Dimensions (L x W x H): approx. 920 x 750 x 1960 mm
– Weight: approx. 400 kg
