Gaoke GK-XL High Speed Speedwave machine
- You can find this machine in different sizes and with different equipment.

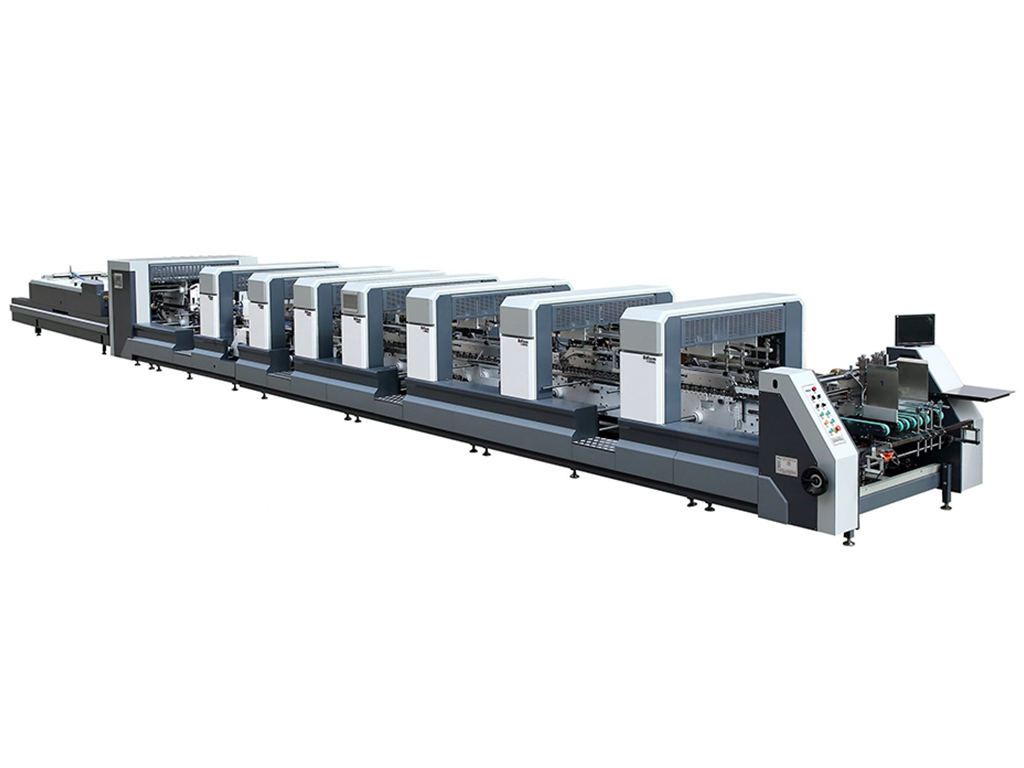

XL Machine Picture
XL series Automatic high speed intelligent folding gluing machine combined with new advanced technology,controlled by memory system,it is another masterwork of Zhejiang New Luolan Machinery.It can store memories of different data of different shapes of boxes,which realizes automatic memory control rocking plate position and increases efficiency and accuracy.
The whole machine adopts servo motor controllers,hook-less structure for the crash lock bottom instead of traditional folder gluer.XL series Automatic high speed intelligent folding gluing machine is your best option for packaging.
XL Parameters
| XL series | 650XL | 800XL | 1100XL |
| Processed Materials | |||
| Carton board max. | 650 MM | 800 MM | 1100 MM |
| Corrugated flute type | A,B,E | A,B,E | A,B,E |
| Capability | |||
| Speed max. | 400 m/min | 400 m/min | 400 m/min |
| Inching speed | 10 m/min | 10 m/min | 10 m/min |
| Thickness of folded box max. | 12 mm | 20 mm | 20 mm |
| Blank width | 650 mm | 800 mm | 1100 mm |
| Total power | 31 kW | 38.2 kW | 38.2 kW |
| Electrical connected load | 22.5 kW | 25.5 kW | 29 kW |
| Compressed air | 6 bar | 6 bar | 6 bar |
| Air compressor capacity | 10 m³/h | 10 m³/h | 10 m³/h |
| Air tank capacity | 60 L | 60 L | 60 L |
| Dimensions & weight | |||
| Length*Width*Height | 16*1.55*1.65m | 18 *1.7*1.65m | 18*2*1.65m |
| Net Weight | 8T | 9T | 11 T |
XL Parameters
 | Paper Feeding Section Rail width can be horizontally adjusted and set by seven pieces 30mm Operators can operate feeder switch in any regional. Embossing drive wheel guide the feeding section belt, side feed gates in Vibration device coordinate with motor which helps machine consecutive Independently motorized servo motor control, simultaneous Feeder section equipped with three pieces feeding knife, adjust |
 | Aligner section The paper board sent from feeder section will be corrected by aligner Pressing drive pressure can be adjusted up and down to accommodate |
 | Pre-folding section Special first folding line pre-fold 180°. third line 165° ,which perfectly meeting |
 | Climbing Section Besides the faster speed，higher precise and running more steady， It is |
 | Lower gluing tank lower gluing tank is large volume. Easy to remove and clean Electronic upper gluing system by guns. |
| Folding and closing The Second and fourth folding line 180° Folding and closing section transmit from right and left side ,the belt speed can |  |
| Trombone section Up and down belt can be adjusted separately. Equipped with photo-electronic counting device and kicking paper device, which |  |
| Transmission Equipped with special additional sponge belt for the press of boxes valley part. Upper section moves back and forward, allowing for different box length. Upper section moves back and forward, allowing for different box length. |  |
 | 4 and 6-corner device Motorized and untimed electronic back folding system with intelligent servo motor technology |
| Memory function
|
|
| When setting a job, board of machine have it’s own position. Controlled by servo driver, the memory control system worked by saving data of board positioning, which have realized artificial intelligence and highly improved the efficiency and precision of box forming. | |
| Spraying System Equipped with three guns, convenient in the production of 4/6 corner box and |  |
Samples Parameters
| Straight-line box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 75-650 | 75-800 | 75-1100 | |
| B | 60-650 | 60-800 | 60-800 | |
| C(Min) | 35 | 35 | 35 | |
| Crash lock bottom box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 160-650 | 160-800 | 160-1100 | |
| B | 90-900 | 90-900 | 90-900 | |
| C(Min) | 20 | 20 | 20 | |
| D(Min) | 30 | 30 | 30 | |
| E(Min) | 40 | 40 | 40 | |
| Tapered box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 160-650 | 160-800 | 160-1100 | |
| B | 90-650 | 90-800 | 90-1100 | |
| C(Min) | 40 | 40 | 40 | |
| D(Min) | 35 | 35 | 35 | |
| E(Min) | 20 | 20 | 20 | |
| 4 corners box |  | |||
| Model | 650Type | 800Type | 1100Type | |
| A | 160-500 | 160-800 | 160-1100 | |
| B | 120-650 | 120-800 | 120-1000 | |
| C(Min) | 30-100 | 30-100 | 30-100 | |
| D(Min) | 90 | 90 | 90 | |
| E(Min) | 80 | 80 | 80 | |
| 6 corners box |  | |||
| Model | 650Type | 800 Type | 1100 Type | |
| A | 250-650 | 250-800 | 250-1100 | |
| B | 120-800 | 120-800 | 120-800 | |
| C(Min) | 30-100 | 30-100 | 30-100 | |
| D(Min) | 90 | 90 | 90 | |
| E(Min) | 80 | 80 | 80 | |
Description
Additional information
| Availability | Available for Ordering |
|---|---|
| Brand | Gaoke |
| Condition | New |
| Model | XL |
| Status | Out of Stock |
