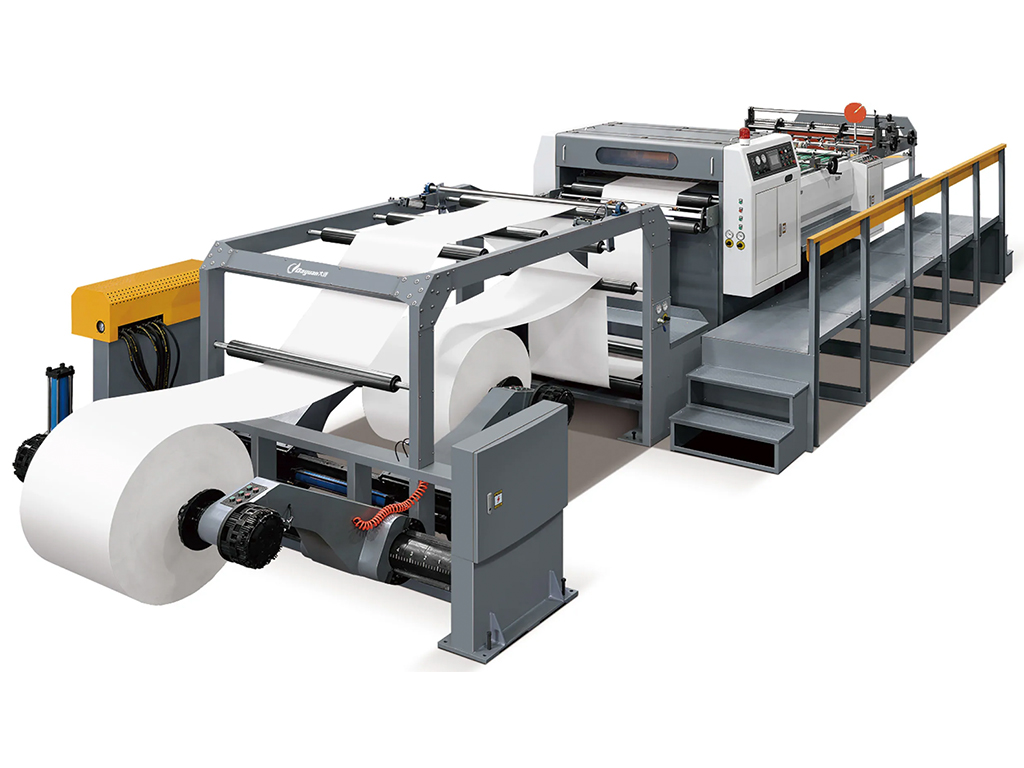

Youbond Servo Precision High Speed Sheet Cutter Machine
- You can find this machine in different sizes and with different equipment.
| PARAMETER | |
| Model | CM1100A/CM1400A/CM1700A/CM1900A |
| Cutting type | The up knife cut reciprocally and the down knife is fixed |
| Applicable range of paper | 60-550GSM |
| Max. paper roll diameter | 1500mm(CM-1100)/1800mm(CM-1400/1700/1900) |
| Max. paper-cutting width | 1100mm/1400mm/1700mm/1900mm |
| Range of cutting length |
450-1450mm (CM-1100)/450-1600mm (CM-1400/1700/1900) |
| Cutting sheet number | 2 sheet |
| Cutting precision | Cutting length 1000mm: ±0.5mm
Cutting length>1000mm: ±0.1% |
| Max. cutting speed | 300 cut/min |
| Max. cutting meter speed | 300 m/min |
| Max. paper stacking height | 1500mm |
| Air pressure source requirement | 0.8Mpa |
| Design power | 380V/220V*50HZ |
| Gross weight | 9500/10500/12000/14000KGS |
Description
Additional information
| Availability | Available for Ordering |
|---|---|
| Brand | Youbond |
| Condition | New |
| Status | Out of Stock |
