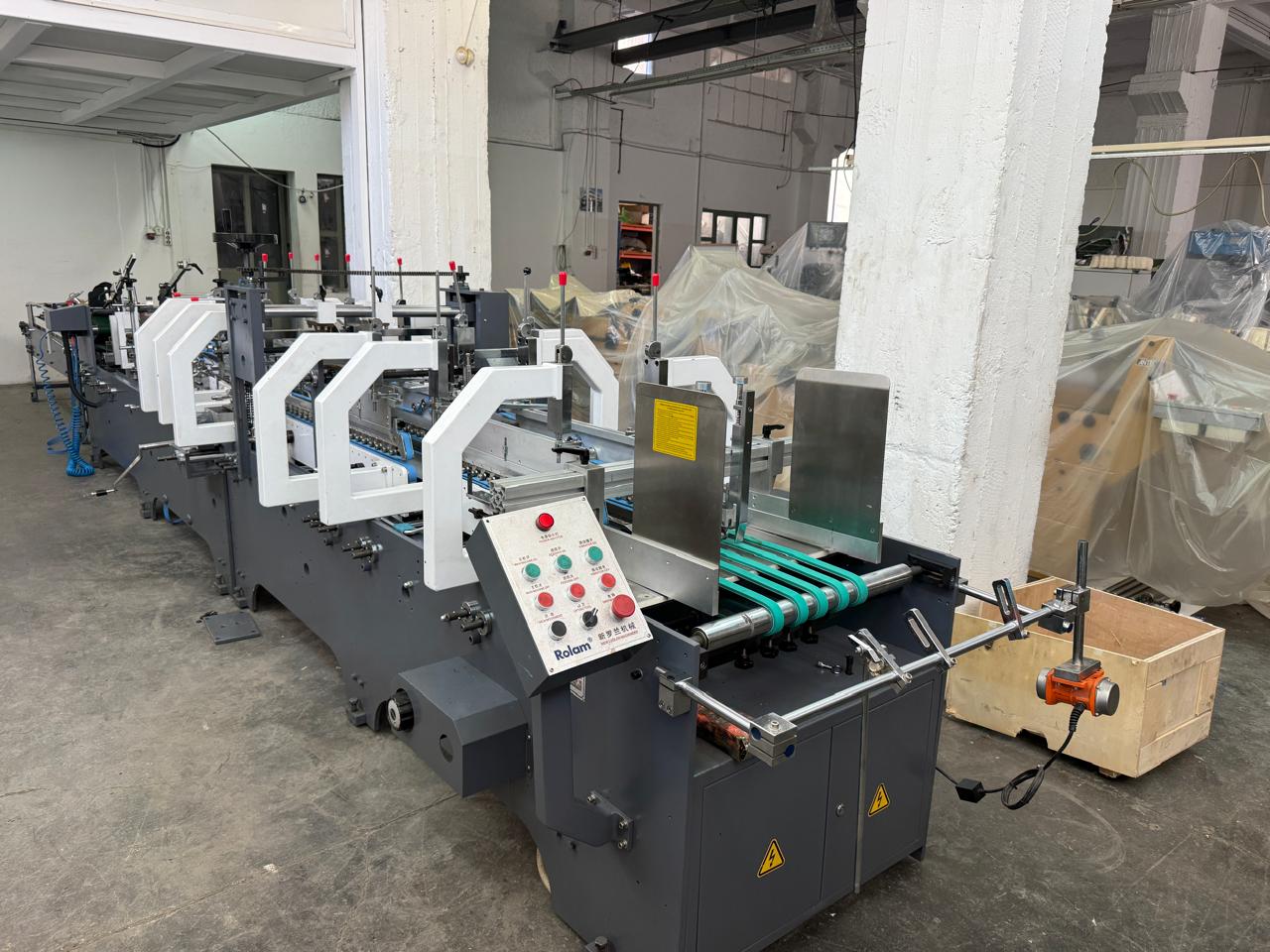

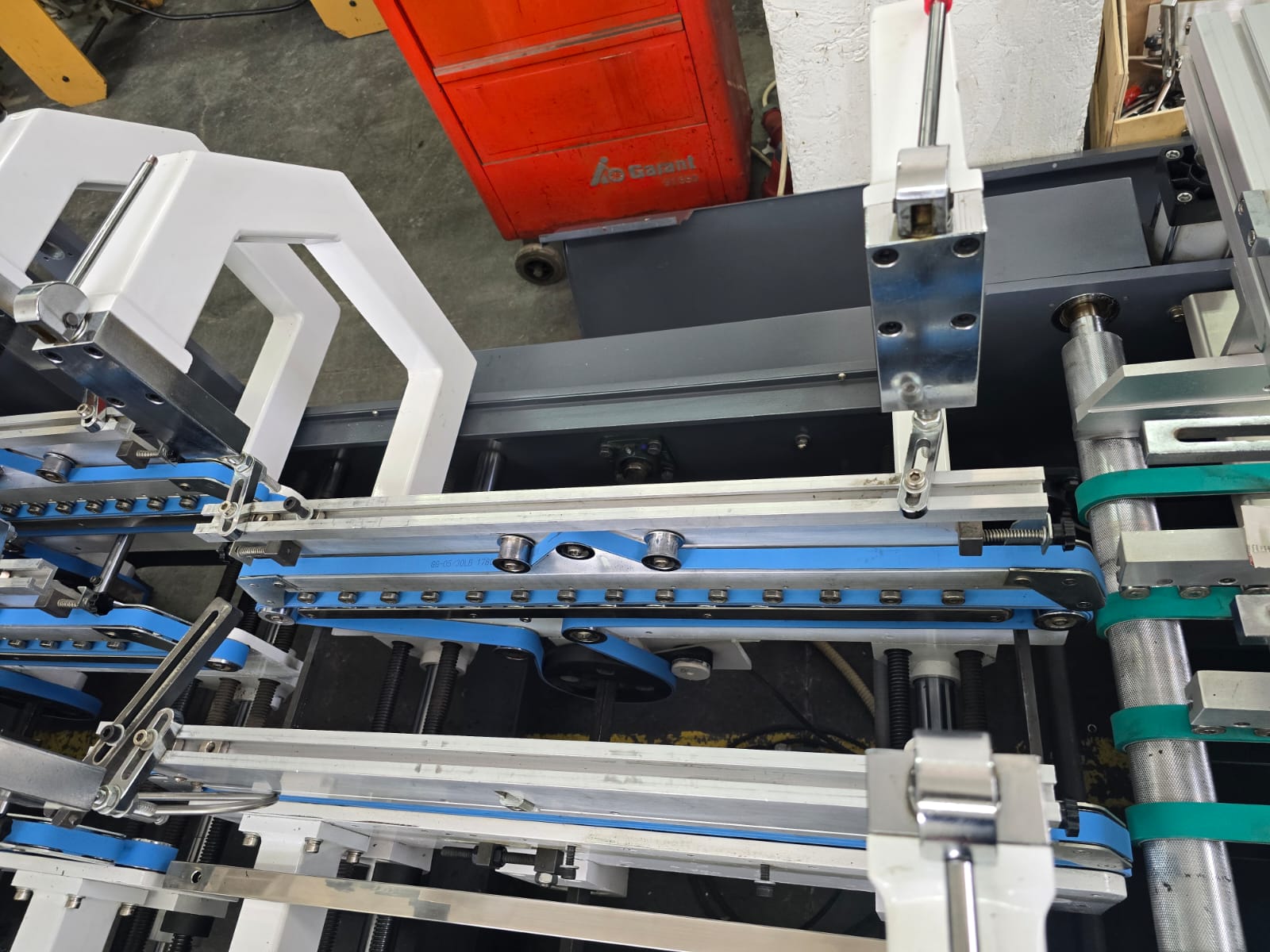

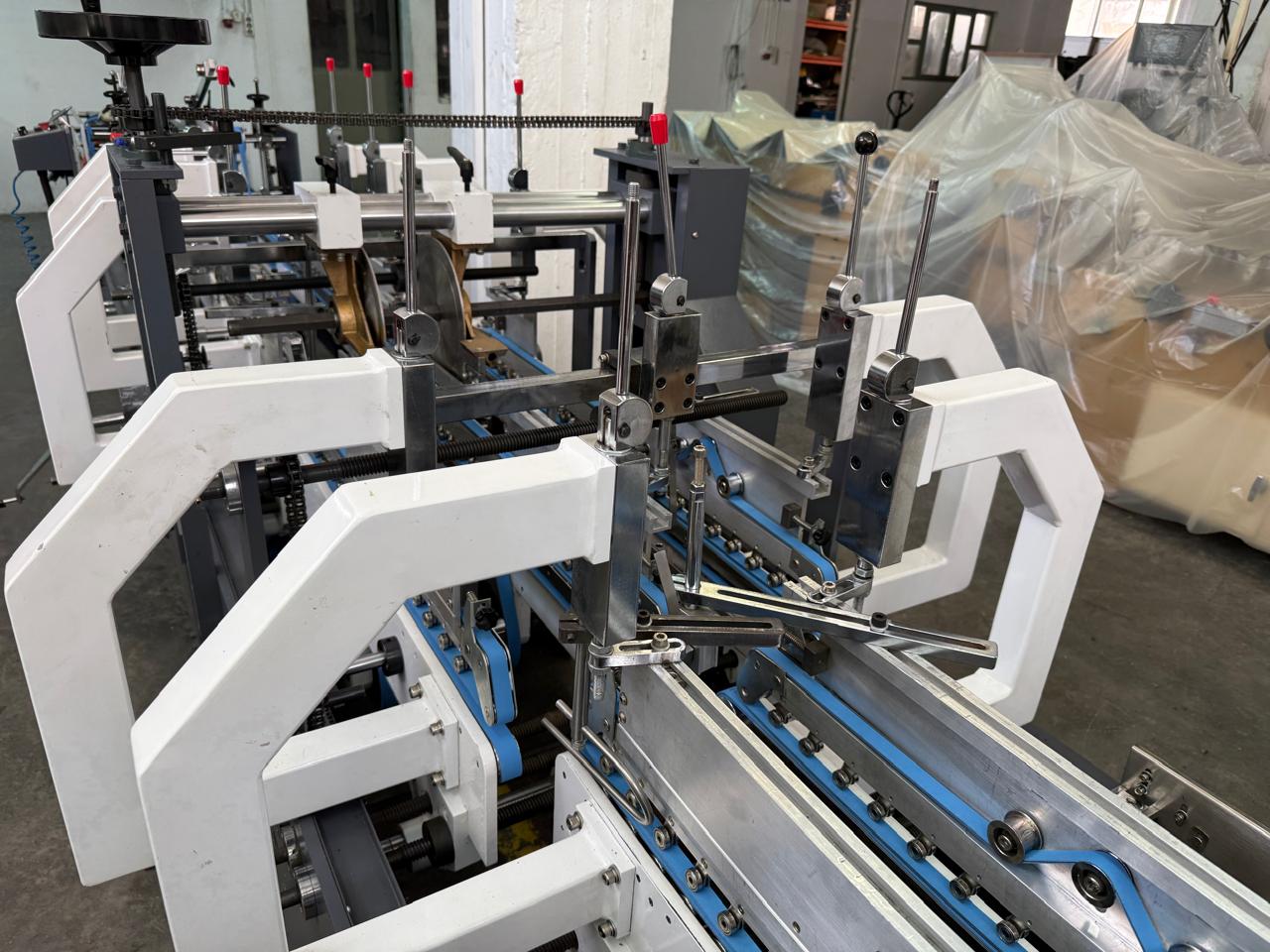

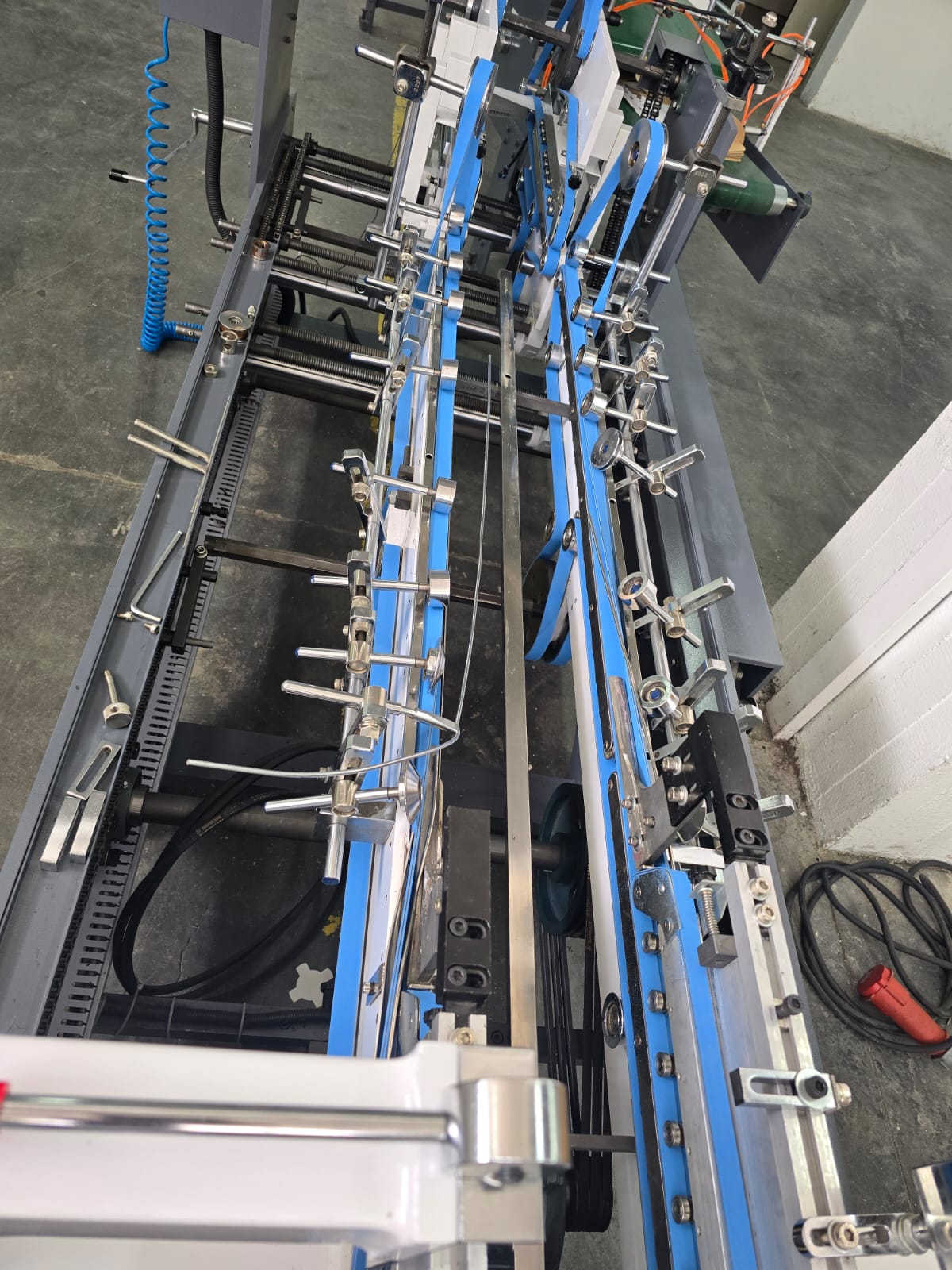

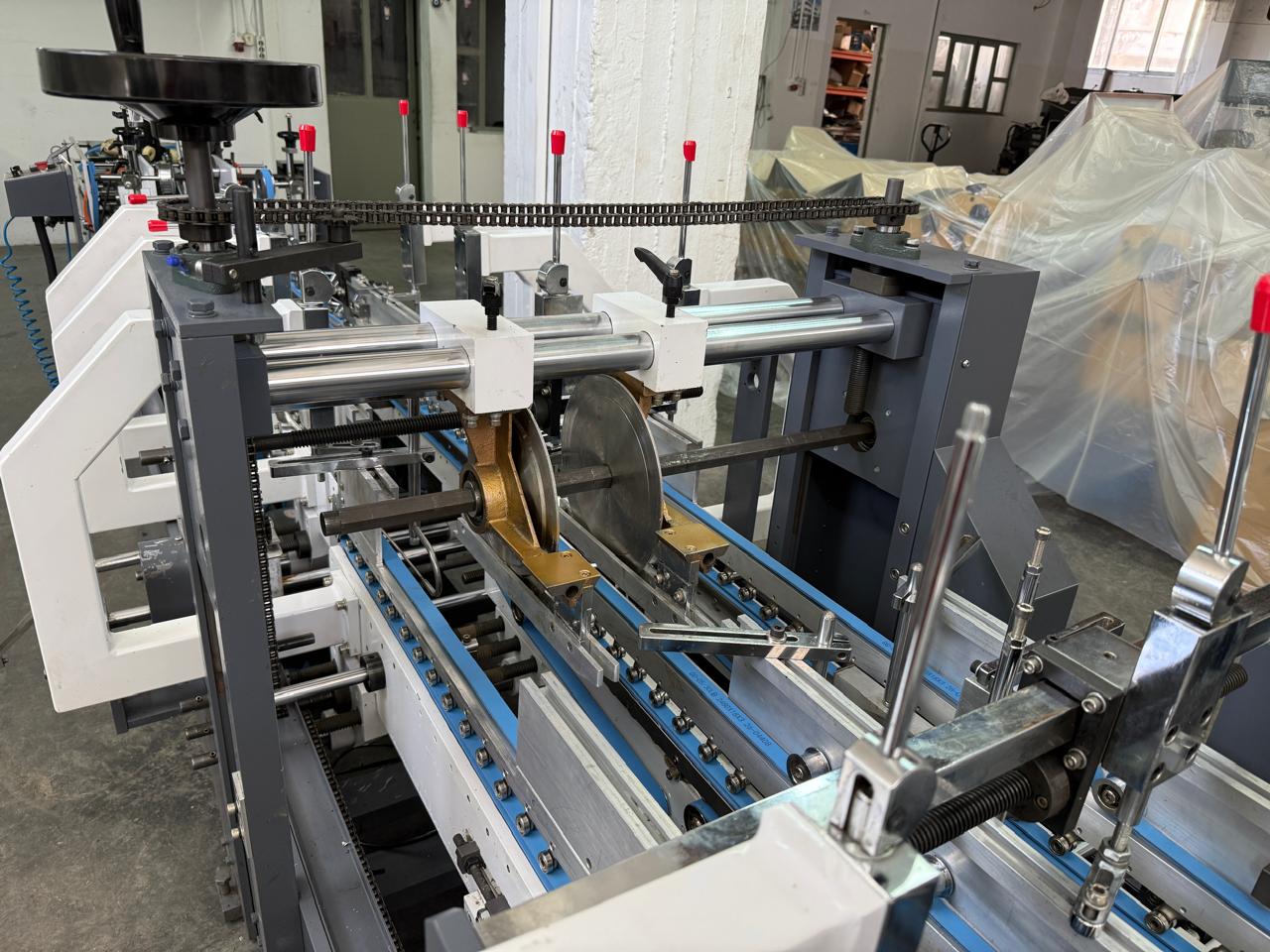

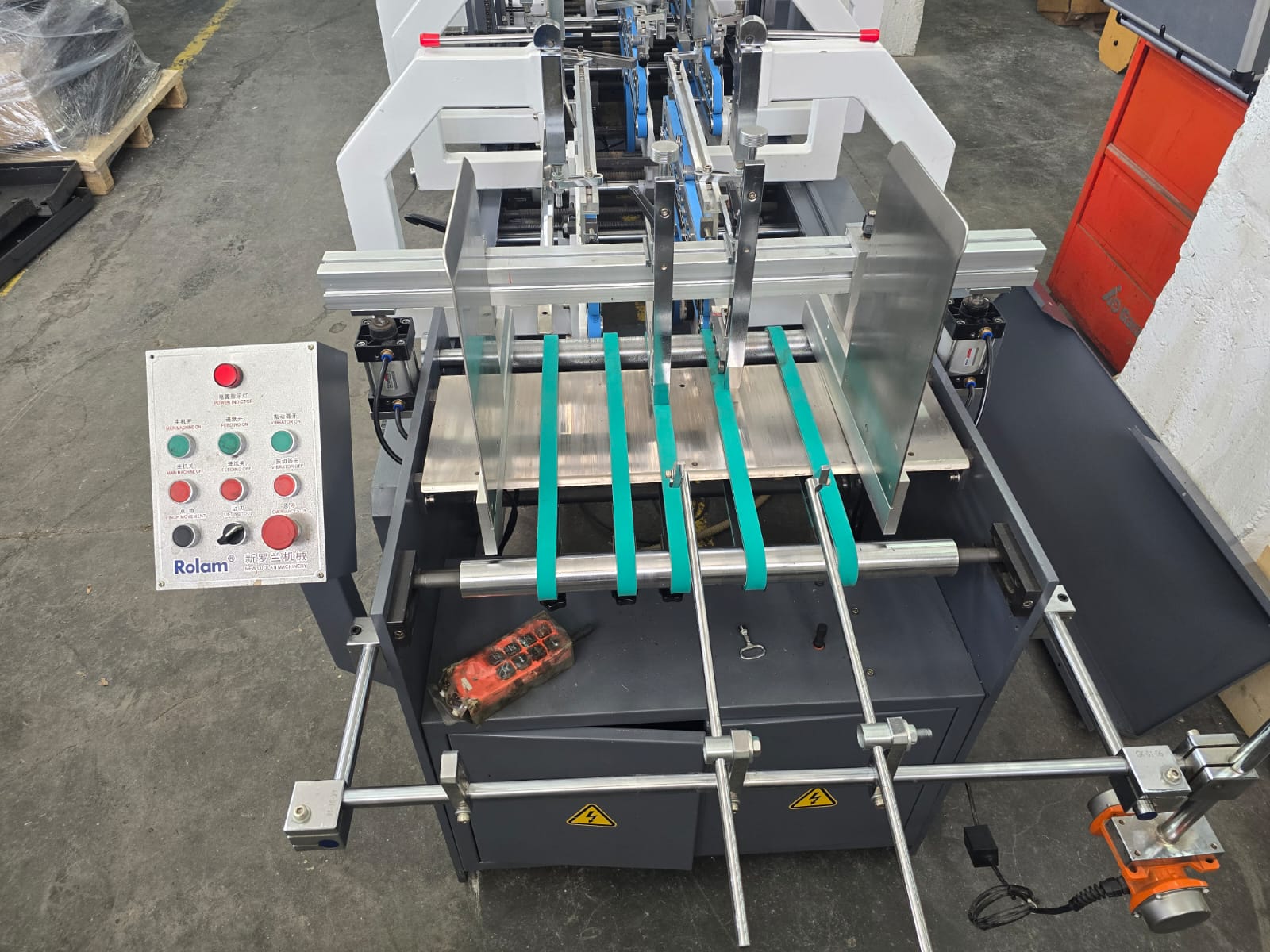

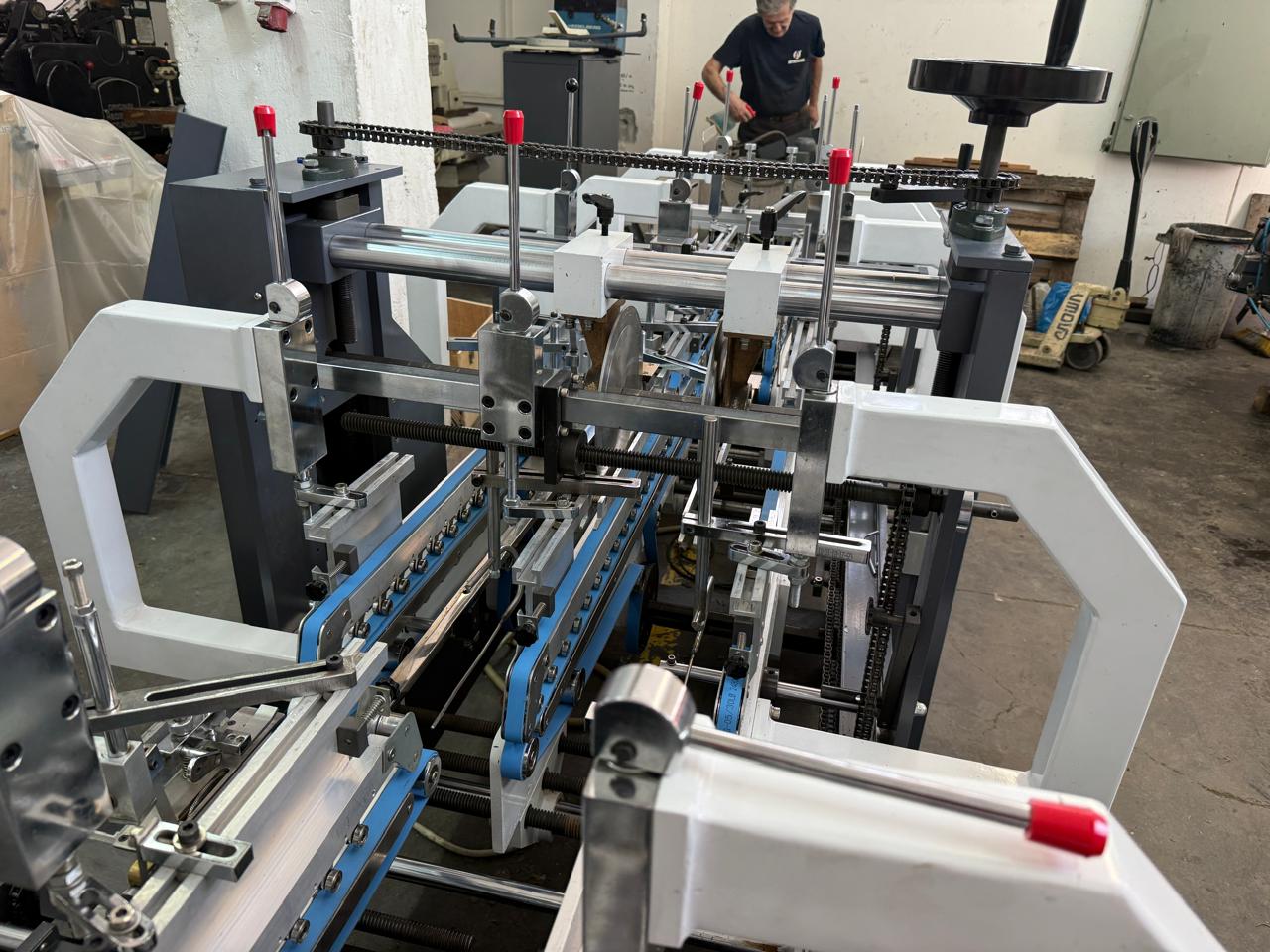

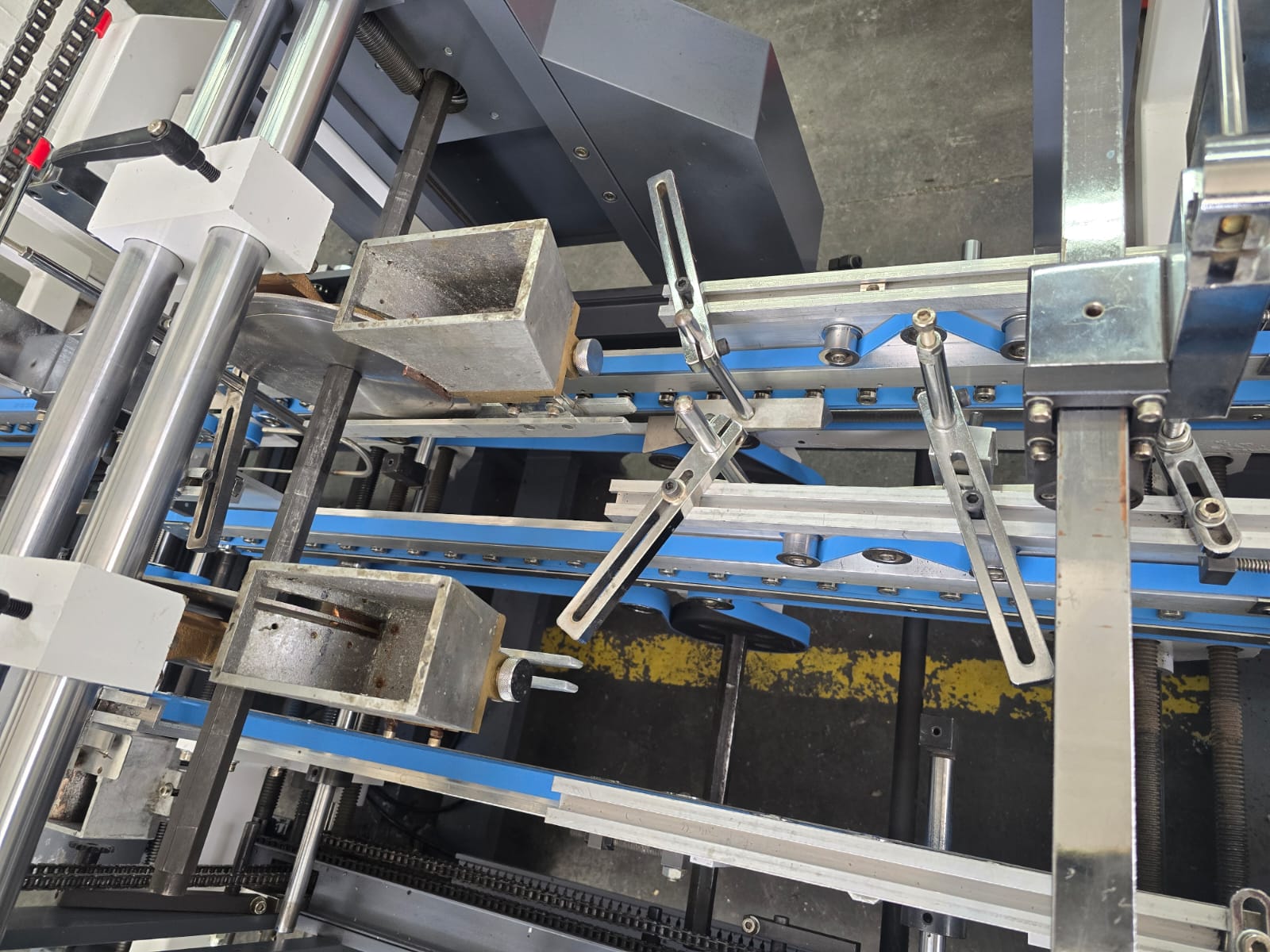

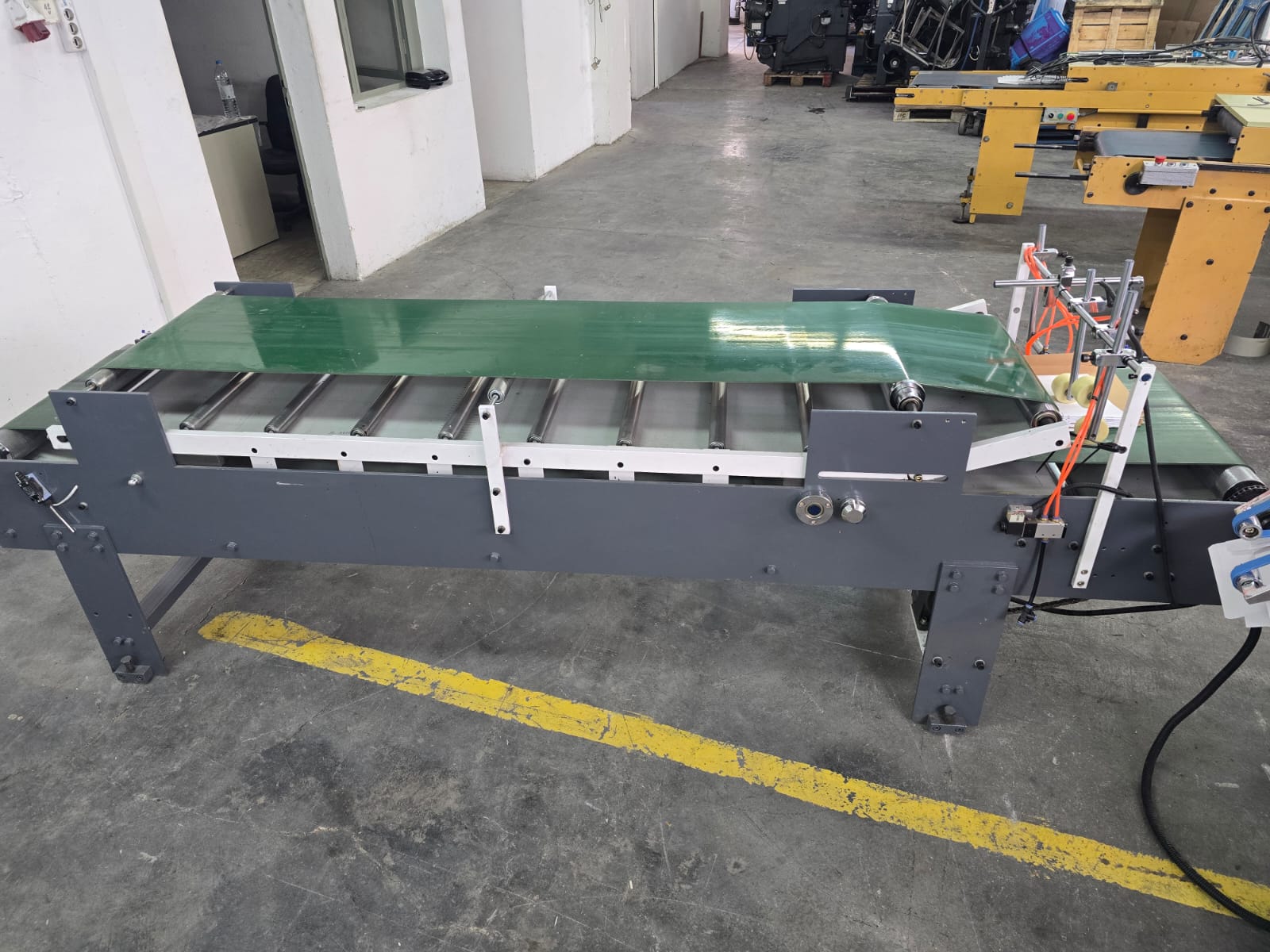

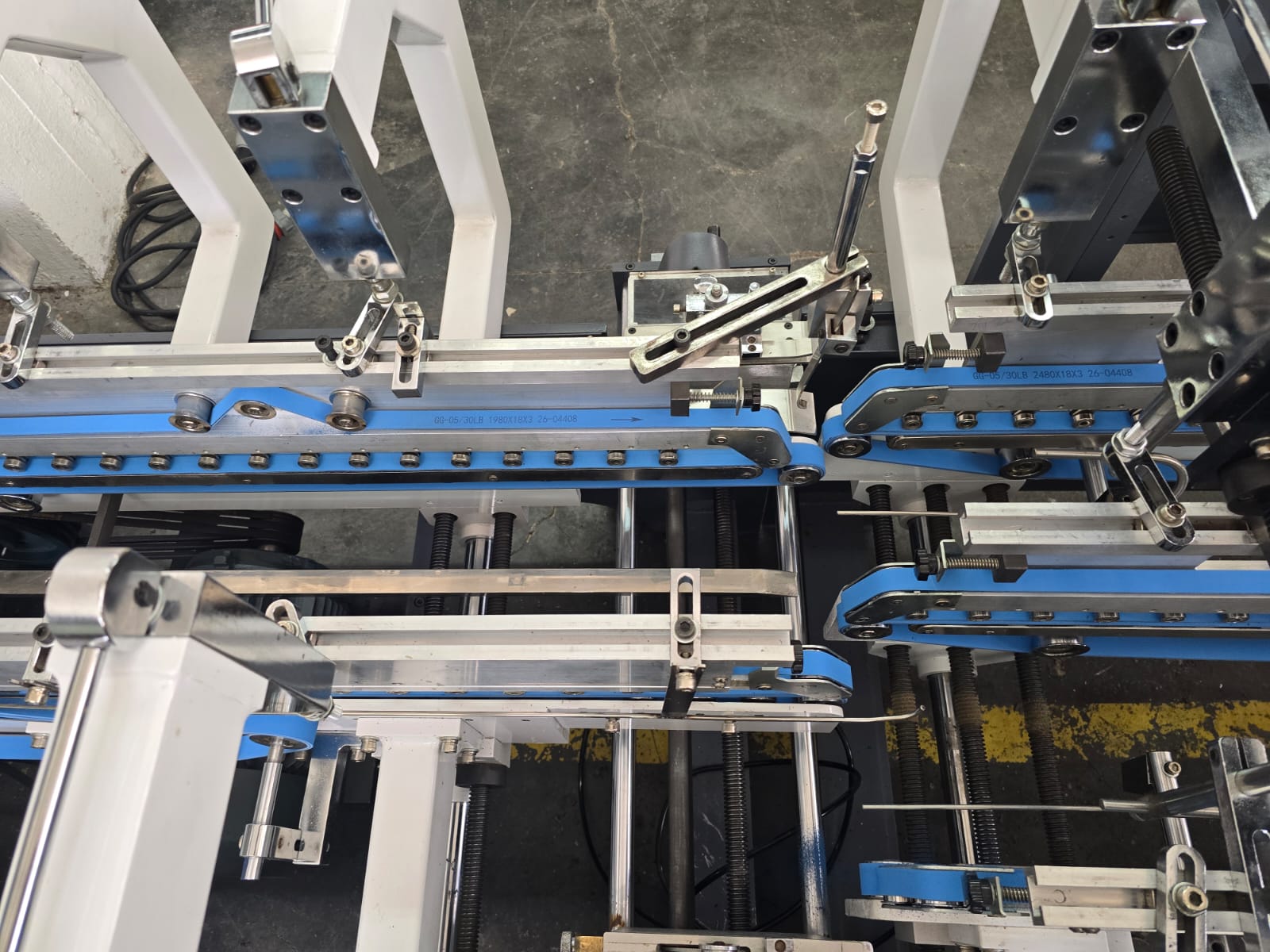

Gaoke GK-650
| AS-G 技术参数 TECHNICAL PARAMETERS | |||
| 型号 MODEL | 650 | 800 | 1100 |
| 纸张材料 Paper material | 卡纸Cardboard 210-800gsm，E/N/F瓦楞 E/N/F Flute | ||
| 最大速度Max. speed | 300m/min | ||
| 折叠箱厚度 Max .thickness of folded box | 12mm | 12mm | 12mm |
| 折盒方式 Way of folding | 第一折与第三折为180°与135°，第二折与第四折为180°
Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180° |
||
| 电源电压 Power supply | 3P 380V 50HZ | ||
| 最大出纸宽度 Blank width | 650mm | 800mm | 1100mm |
| 长x宽x高 Length x Width x Height | 12×1.08×1.4m | 12×1.23×1.4m | 12×1.58×1.4m |
| 重量Net Weight | 4T | 4.5T | 5T |
| 整机功率Total power | 12kw | 14kw | 15kw |
| 普通盒型 Straight Line Box, Carton type and size: |  |
|||
| Model | 650Type | 800Type |
1100Type
|
|
| 配置规格
Way of folding |
本折两板
Two carriers |
本折两板
Two carriers |
本折两板/三板
Two /three carriers |
|
| B+C+D+E | 130-650 | 142-800 | 130/202-1100 | |
| F | 70-700 | 70-700 | 70-700 | |
| G(Max) | 700 | 700 | 700 | |
（本折单轨道方式B+C+D+E参数最小可以做到75mm）
（Final folding by one carrier:B+C+D+E mini feeding width 75mm）
| 勾底盒型 Crash Lock Bottom Box, Carton type and size: |  |
|||
| Model | 650Type | 800Type |
1100Type
|
|
| 配置规格
Way of folding |
本折两板
Two carriers |
本折两板
Two carriers |
本折两板/三板
Two /three carriers |
|
| B+C+D+E | 130-650 | 142-800 | 130/202-1100 | |
| F | 70-700 | 70-700 | 70-700 | |
| G(Max) | 700 | 700 | 700 | |
| H(Min) | 25 | 25 | 25 | |
| L（Max） | 30-100 | 30-100 | 30-100 | |
Description
Additional information
| Availability | Immediately |
|---|---|
| Brand | Gaoke |
| Condition | Used |
| Sheet Size | 65 cm |
